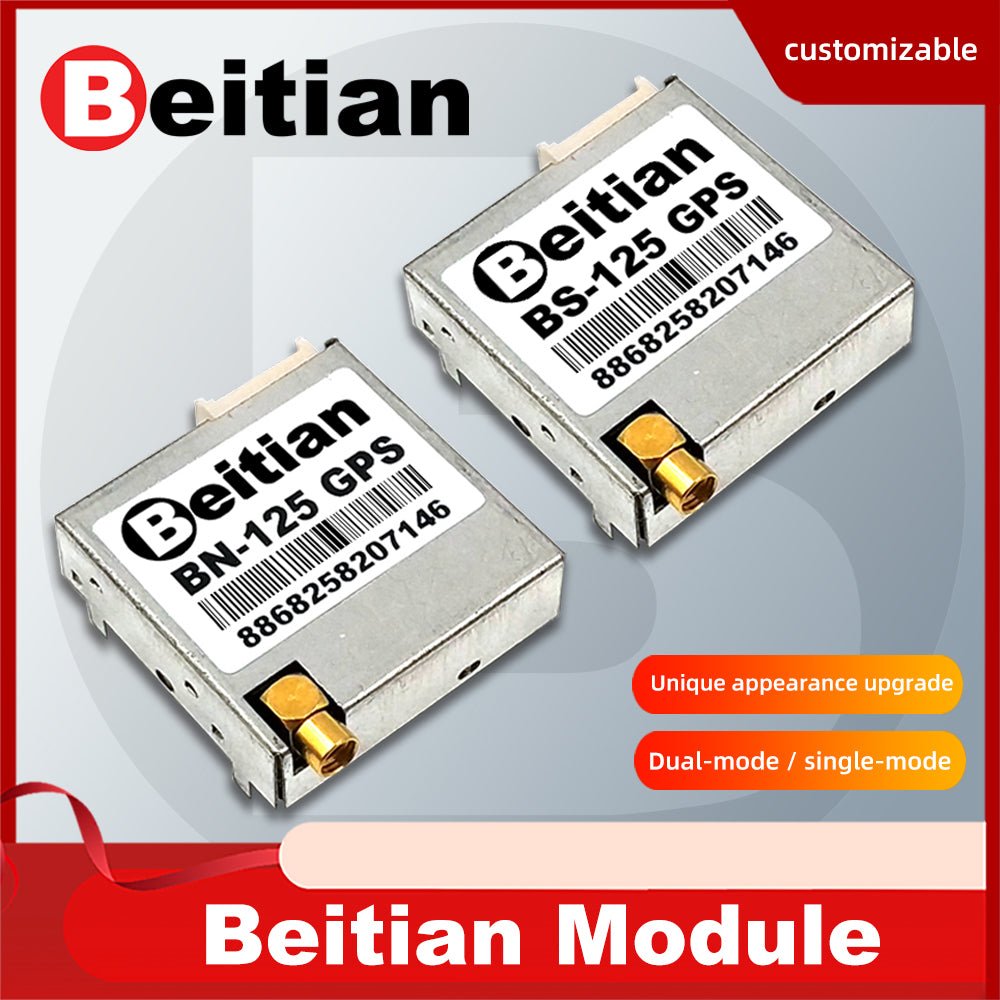

Model： BS-125(GPS +GLONASS+TTL)

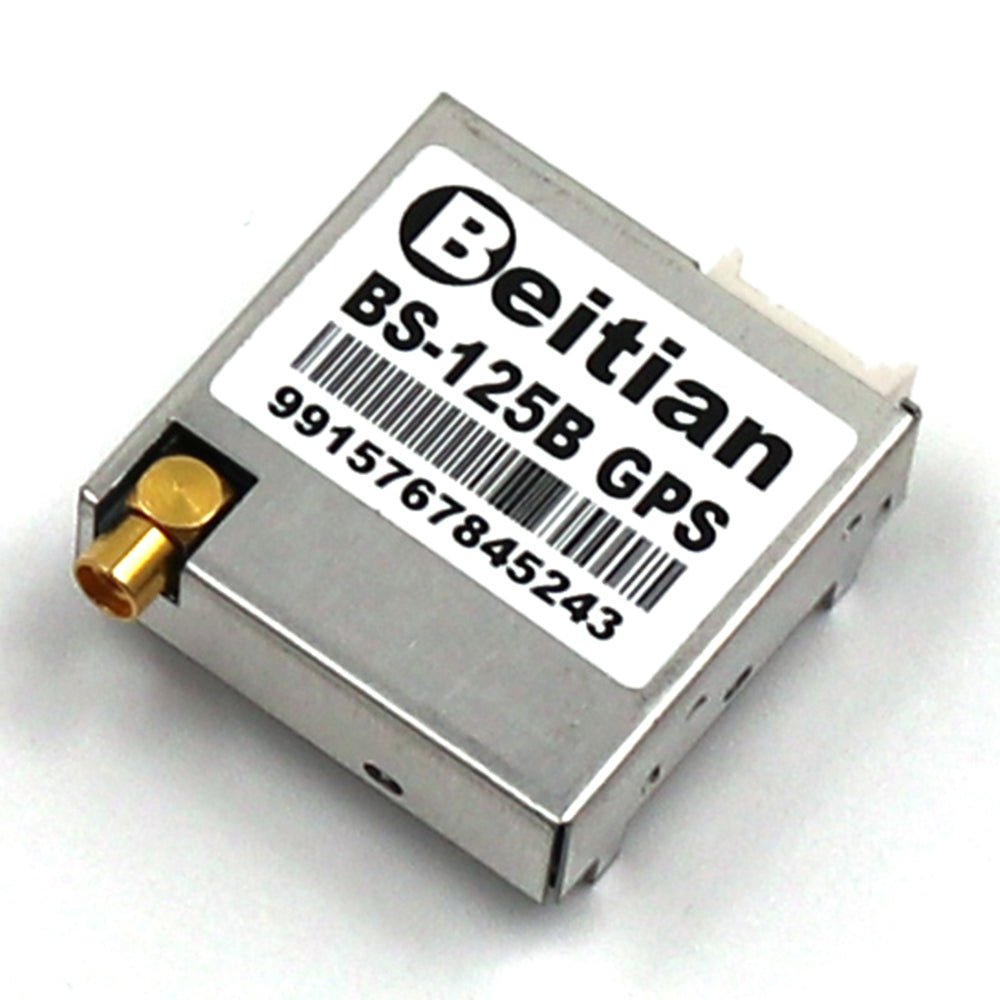

BS-125B(GPS +GLONASS+232)
BN-125(GPS+TTL)
BN-125B(GPS+232）
Feature：
Chip:M8030-KT
Frequency:GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1
Operating mode:GGPS, GLONASS, BDS, GALILEO, SBAS, QZSS.Default GPS, GLONASS, SBAS, QZSS.
Channel:72 search channel
Sensitivity:
Track:-167dBm
Re- arest:-160dBm
Cold start:-148dBm
Hot Start:-156dBm
Precision:
Horizontal accuracy:2.0m CEP 2D RMS SBAS Auxiliary (for Open Sky)
Speed accuracy:0.1m/s 95% (SA off)
Timing: 1us synchronized to GPS time
Acquisition Time
Cold start :26s
Hot Start:25s
Assisted start:1s
Data Output：
Baudrate:4800bps-921600bps default 9600ps
Output level:TTL level
Output protocol:NMEA-0183 protocol
NMEA sentences:RMC,VTG,GGAGSA.GSV,GLL
Update frequency:1Hz-10Hz, default 1Hz
Flash:4M FLASH, Store the configuration permanently
Operational Limits：
High:<50,000m
Speed:<515m/s
Gravitational acceleration:<4g
Power consumption:
Voltage:DC 3.6V-5.5V, typical: 5.0V
Current:Normal 50mA/5.0V
Physical Specications：
Size:22mm*20mm*6mm
Weight:12g
Package:1.25mm 6pins connector

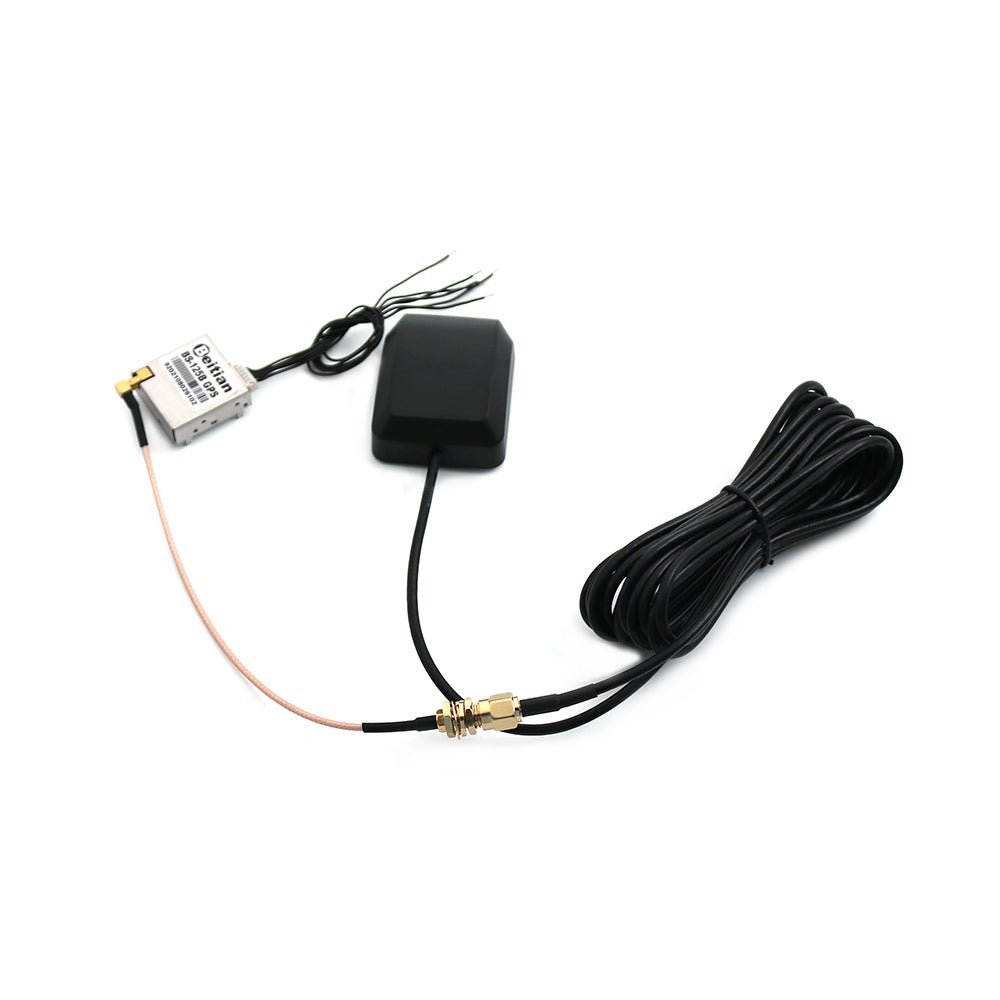

Antenna:Need a external antenna
Surroundings:
Operating temperature:-40°C~ +85°C
Storage temperature:-40°C~ +105°C
LED:
TX :The blue light flashes when power on, indicating that there is data output
PPS:The light does not turn on when it is not positioned; after 3D positioning, it starts to flash
Pin Description：
Rear view：

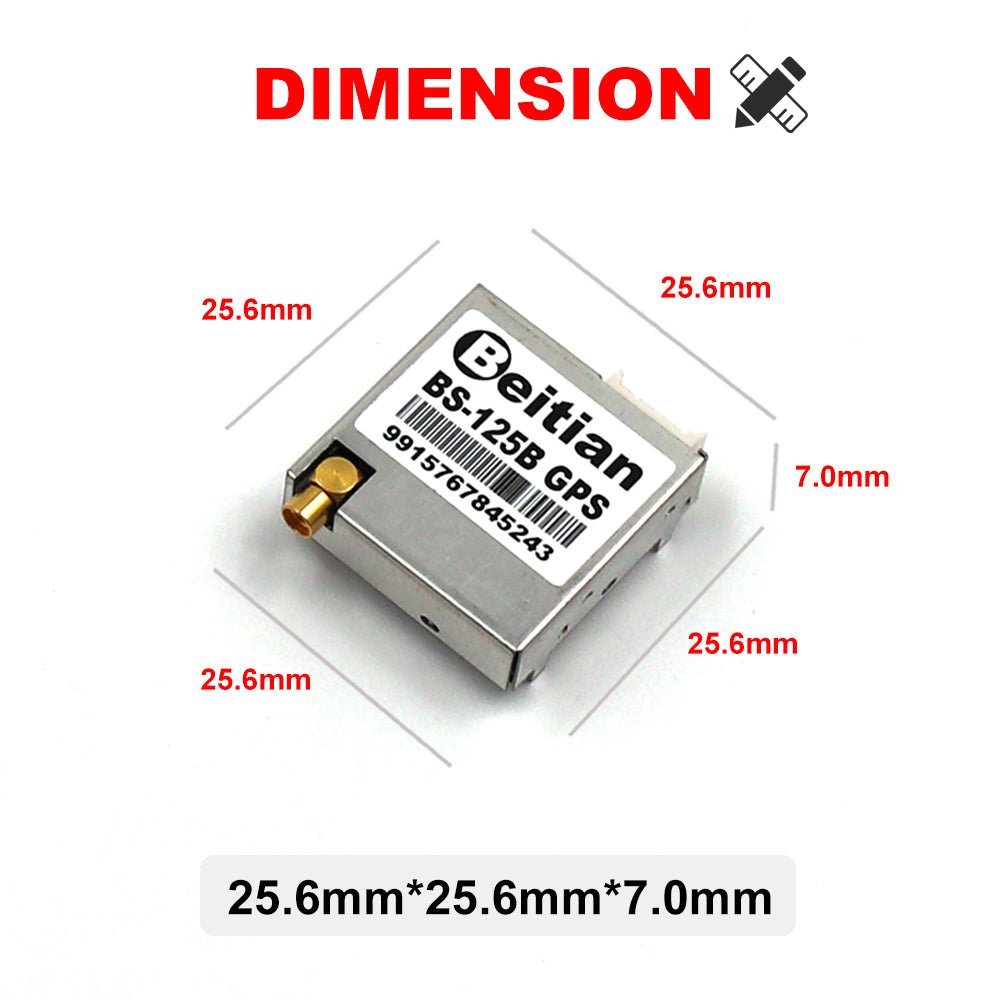

Mechanical specifications:
