BN-880 GPS Module U8 with Flash HMC5883L Compass + GPS Active Antenna Support GPS Glonass Beidou Car Navigation for Arduino Raspberry Pi Aircraft Pixhawk APM Flight Controller



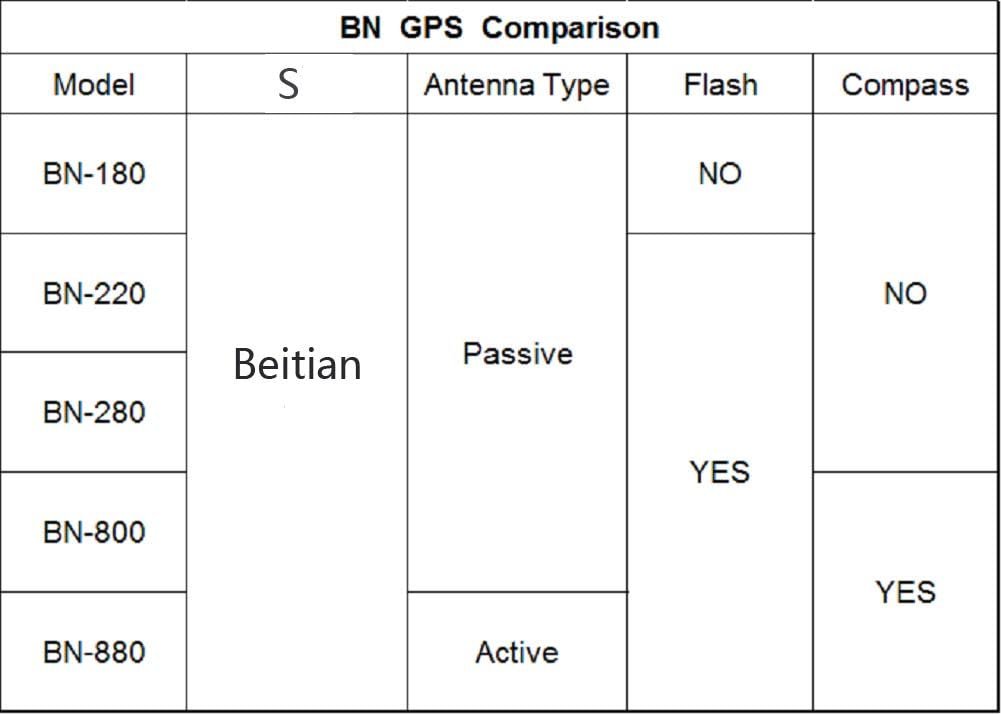

特征：

GPS 模块，双模块指南针

配电子罗盘IC HMC5883L

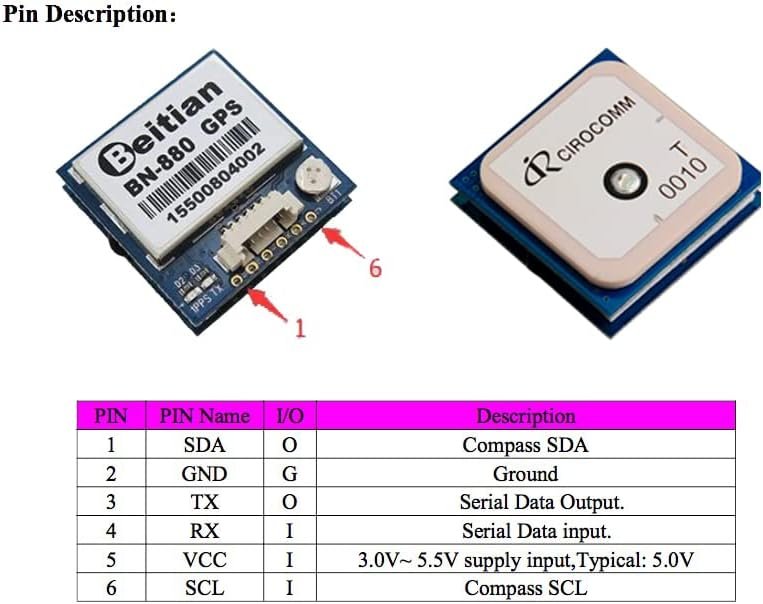

6pins贴片座之间间距1.25mm

笔记：

不能用于单片机飞行控制，但适用于开源飞行控制器。

GPS 程序设置文件及说明：请点击这里 BN-880 GPS 配置文件

套餐包括：

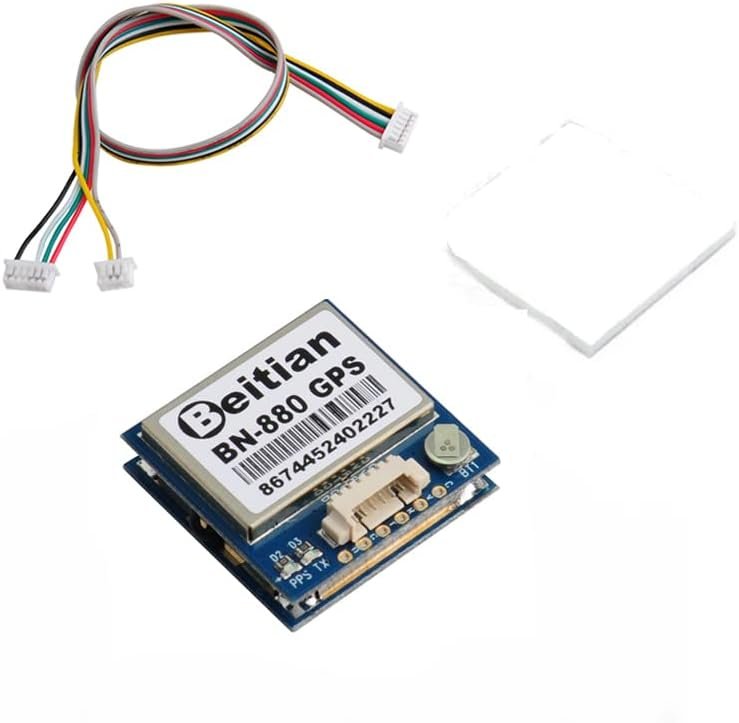

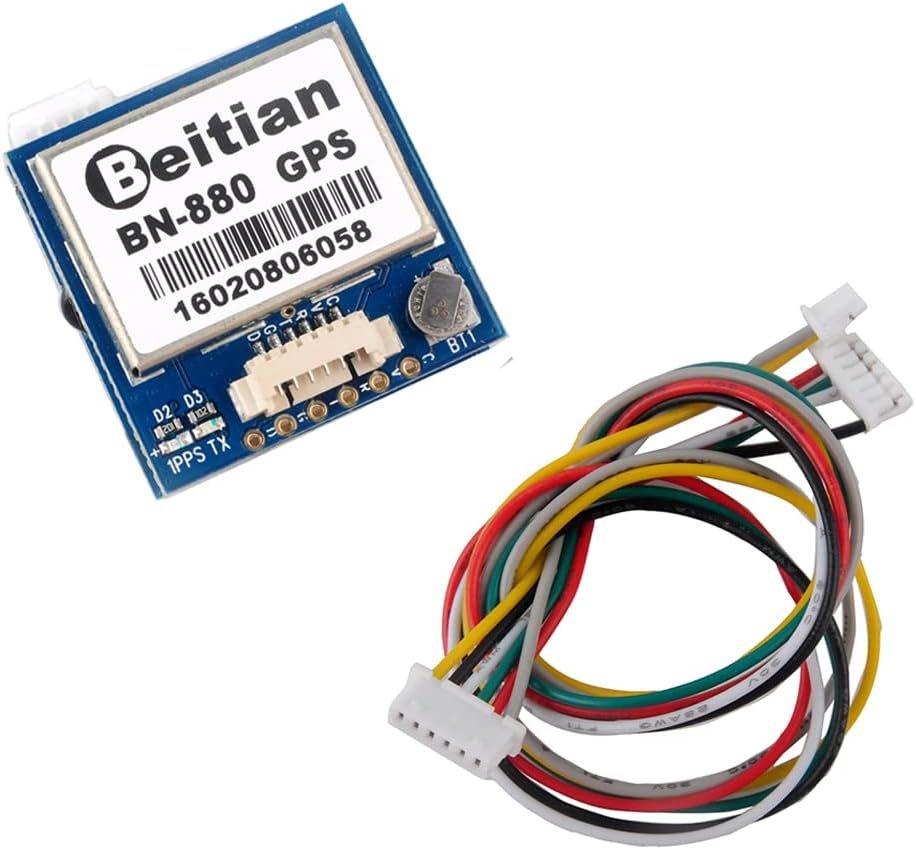

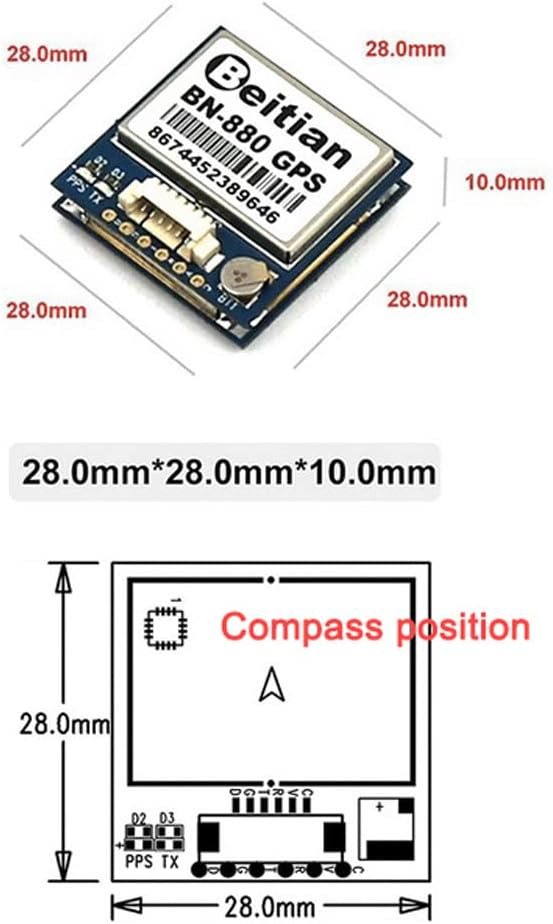

1 个 BN-880 GPS 模块



NMEA 消息输出示例

GNRMC,073114.00,A,2237.56240,N,11401.59614,E,1.329,21.11,020916,,,A,V*37

GNVTG,21.11,T,,M,1.329,N,2.462,K,A*1B

GNGGA,073114.00,2237.56240,N,11401.59614,E,1,12,0.78,112.9,M,-2.5,M,,*54

GNGSA,A,3,19,05,02,06,17,12,09,13,,,,,1.48,0.78,1.26,1*01

GNGSA,A,3,69,83,84,70,68,82,,,,,,,1.48,0.78,1.26,2*0E

GPGSV,4,1,13,02,46,340,36,05,52,254,37,06,42,041,41,09,22,053,40,0*6E

GPGSV,4,2,13,12,32,282,35,13,​​​​13,185,33,17,36,131,37,19,57,119,44,0*66

GPGSV,4,3,13,20,03,237,,23,00,038,,25,09,311,19,42,51,128,32,0*60

GPGSV,4,4,13,50,46,123,33,0*50

GLGSV,2,1,08,68,25,027,39,69,78,011,36,70,40,213,43,74,00,259,,0*78

GLGSV,2,2,08,82,06,124,36,83,46,085,44,84,44,358,41,85,05,324,14,0*74

GNGLL,2237.56240,N,11401.59614,E,073114.00,A,A*7C

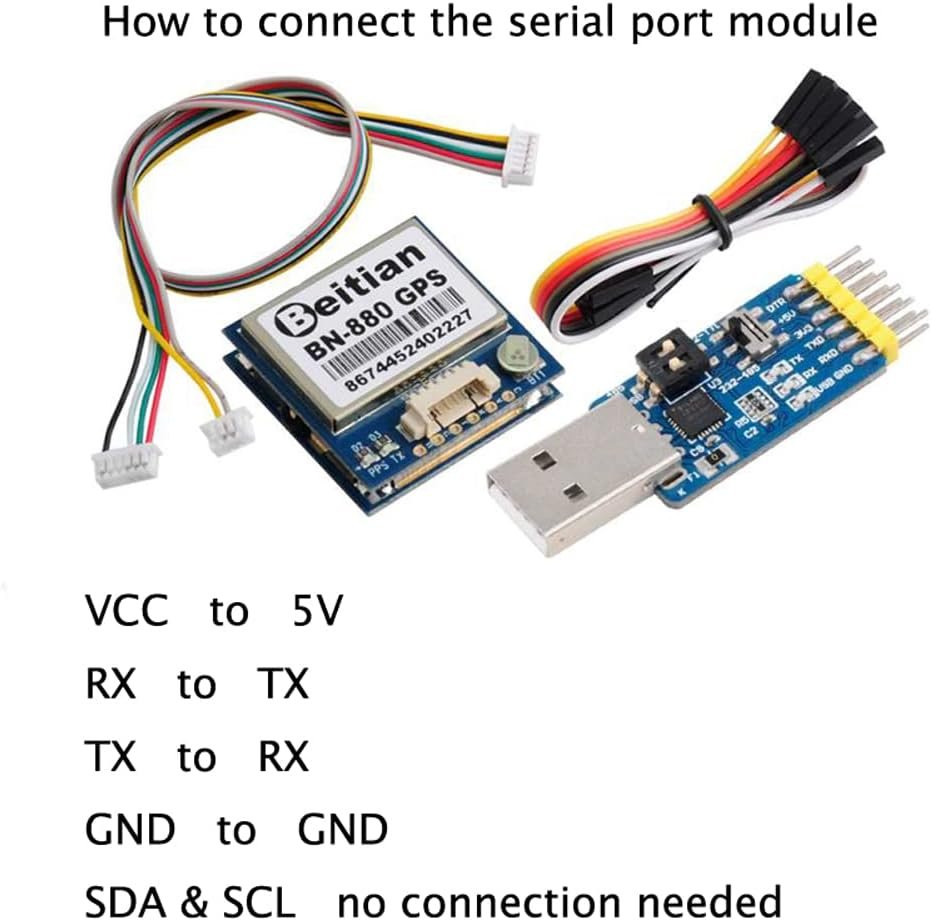

BN 880 GPS 连接至飞行控制器

VCC至5V

RX 至 TX3

TX 至 RX3

GND 至 G



BN-880 飞机 GPS Pixhawk Betaflight 飞行控制

BN-880 飞机 GPS Pixhawk Betaflight 飞行控制

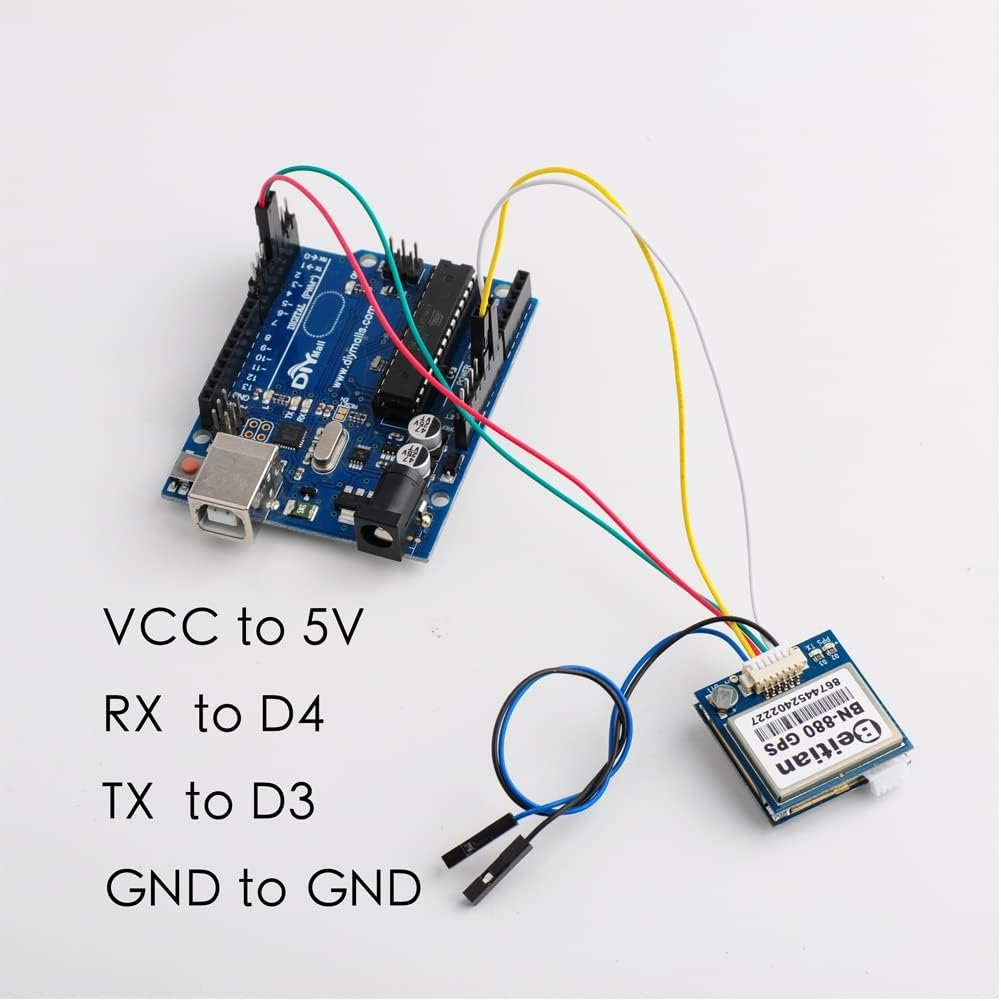

BN 880 GPS 连接至传感器

VCC至5V

RX 至 D4

TX 至 D3

接地到接地
